INTRODUCTION

Cephalometry arises from anthropometry and craniometry.

The term Cephalometry, which comes from the Greek words "Kephale", meaning head and "metron", which means measure, is a set of procedures for measuring the head, and describing and quantifying the structures involved in malocclusion, such as bones, teeth and soft tissues (1).

The principle of cephalometric analysis is to compare the patient with a normal reference group in order to detect any differences between the patient's dentofacial relationships and those that would be expected in his or her ethnic or racial group (2).

In this way, the horizontal and vertical relationships of the five functional components of the face are studied: the skull, the cranial base, maxilla, mandible, dentition and the upper and lower alveolar processes, to obtain a description of the relationships. In addition, it also studies craniofacial growth patterns, assesses dentofacial proportions, deciphers anatomical bases of malocclusion and predicts the changes that the patient will experience (3).

On November 8, 1895, Professor Wilhelm Conrad Roentgen accidentally discovered X-rays. This discovery initiated the development of orthodontic measurement methods: cephalometric radiography. A great advantage of this study is that it allowed the craniometric measurement of living individuals, so that their growth and development could be studied. It was also possible to observe the bony structures through the soft tissues that cover them so that their relationship could be studied (4).

Holly Broadbent in 1931 introduced the technique of cephalometric radiography, with the purpose of obtaining angular and linear measurements. These measurements have been studied in order to obtain figures that serve as a parameter of normality for the diagnosis of dento-maxillary anomalies.

From these discoveries, different cephalometric analyses began to be developed, each time more complete and nowadays essential. Steiner, Ricketts, Downs, are a few of these (4).

Cephalometric radiographs are two-dimensional images that represent a three-dimensional structure. They are used to evaluate the relationship of the teeth to the jaws, and of the jaws to the rest of the facial skeleton (5). Several components such as an X-ray source, an adjustable cephalostat, a radiographic film holder with intensifying screens and a holder for the holder are essential to obtain it (5).

Rino et al. (6) point out that some factors that may impair the image are radiographic distortion, radiographic magnification, and errors in the delimitation of points and cephalometric measurements.

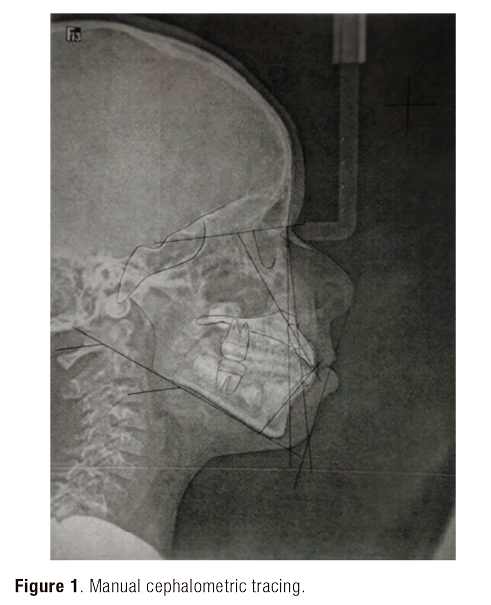

Cephalometric tracing is performed manually, with acetate paper, which is placed on the lateral skull radiograph. The cephalometric points are marked and the cephalometric planes and angles are traced (7).

This method can be very time consuming and still subject to errors. According to Prakash, these are some of the errors:

Incorrect identification of anatomical landmarks due to human error or fatigue factor.

Errors arising from performing several analyses on the same acetate sheet, which may overlap landmarks and planes.

Inexperience of the dentist in locating a point.

Govindrao (8) writes that X-ray exposure can cause the image to have less than ideal contrast or density, making it impossible to visualize the dots correctly.

Erkan et al. indicate that the technical errors in measurement using ruler and protractor, when measuring distance or obtaining angles, is so small that it demands great millimeter precision.

The points are marked and traced with a pencil, whose tip thickness may interfere with the exact measurement (9).

The constant technological advances in the computer area have allowed the development of computer programs designed to perform cephalometric tracings and measurements. Digital tracing has slowly replaced manual tracing (10).

Erkan et al. emphasize that the objective of using the digital system is to reduce the margin of error of measurements in cephalometric analysis, especially when evaluating its reproducibility and with the aim of considerably reducing the working time.

Computer-assisted cephalometric tracing requires the acquisition of a lateral digital radiographic image of the skull; the image is then transferred to a software.

There are 2 ways of digital tracing. In the first one, the clinician marks the cephalometric points, while in the second one, the anatomical points are placed by the algorithm of the digital system.

The literature mentions that in program-assisted cephalometric tracing, angles and distances are automatically calculated to eliminate errors in the drawing of lines between reference points and in measurements with a protractor (9).

Prakash points out that before performing a digital cephalometric analysis, the calibration of the radiograph should be performed, since these, which are shown on the screen, do not provide the image in real size. Hence, this is the first step in a digital cephalometric analysis. This step can be done in two ways, the first one is done by matching the image with the actual measurements of the distance between two points, i.e., the scale of the 20mm ruler appears on the screen as 14mm, with the calibration, the scale of the 14mm ruler will alter the ruler to 20mm. The second way is using the dots per inch (DPI) value of the image; in this method, the image size is calibrated by distributing DPI to the original image size.

Digitizing a cephalogram without calibration would introduce significant measurement errors (7).

Additionally, when the analog radiograph is scanned for a digital cephalometric tracing, it may introduce additional magnification or reduction errors of the scan. This cephalogram must be calibrated for both magnification, one of deflecting the X-ray beam, and the scanning process.

It should be scanned with a visible 100mm scale ruler; calibration is performed by plotting two points of known length on the ruler (7).

The Planmeca Romexis® software platform includes modules and tools for a wide range of dental specialties.

The Planmeca Romexis® Cephalometric Analiysis software module is the tool for performing cephalometric analysis, surgical planning and 2D treatment follow-ups. The software offers advantages such as automatic cephalometric tracing in seconds, versatile overlays for treatment follow-ups, and precision surgical simulation (18).

Retrieved from: https://www.planmeca.com/

MATERIALS AND METHODS

A sample of 24 lateral skull radiographs obtained by the Kodak 8000C Digital Panoramic and Cephalometric System from patients of the Universidad Latina de Costa Rica was used. These were subjected to Steiner and Ricketts cephalometric tracing manually on a negatoscope and with Grafix Cephalometric Tracing acetate, using a 0.5mm lead pencil marking only the necessary anatomical points (Figure 1). Subsequently, the same radiographs were subjected to the Steiner and Ricketts cephalometric tracing in a computerized manner, using Planmeca Romexis® 6.0.1.812 software (Figure 2).

The calibration of both the digital image and the hard copy was based on the measurement of a known distance between two points.

Once the results of both cephalometric tracings were obtained, the differences of the linear and angular measurements were taken. Six measurements were calculated: cephalometric angle SN-Mandibular Plane, ANB, 1-SN and the linear distance of 1-NB, NB-Pog, L.i/Pn-Dt.

The results were obtained by quantitative observation based on a table and analyzed with the t-student statistical test.

RESULTS

The averages of each of the variables measured with the digital and manual techniques were the following, respectively: SN-Pl Mandibular angle 33.96º (SD=4.14º) and 35.83º (SD=3.99º), ANB angle 4.38º (SD=2.28º) and 3.92º (SD=1.99º), 1-SN angle 100.83º (SD=7.12º) and 102.88º (SD=6.75º). On the other hand, the distances measured with the digital technique and the manual technique were the following, respectively: Distance 1-NB 2.92 mm (SD=1.41 mm) and 4.63 mm (SD=2.66 mm), distance NB-Pog -0.25 mm (SD: 0.98 mm) and 0.50 mm (SD: 1.18 mm), distance Li/ Pn-Dt -0.88 mm (SD: 1.87 mm) and 1.75 (SD: 3.19 mm).

In all the measures found, there is a significance of less than 0.05, except for the ANB and 1-SN angles (Table I).

DISCUSSION

In this study, in the 6 measures found, there is a significant difference; p<0.05, with the exception of the ANB and 1-SN angles.

Collins et al. (11) found that the angular measurements they studied were not significantly different, but the linear measurements were.

Albarakati et al. (12) observed significant differences between the two methods in most angular and linear measurements, except for ANB angle (p=0.5), convexity angle (p=0.09), anterior skull base (p=0.3) and lower anterior facial height (p=0.6). Contrary to us, they found significant differences in 1-SN.

Other authors such as Esteva S. et al. (13) in 2014 did not find significant differences in their measurements. We agree on the non-significance with them as well as Farooq and collaborators (14) in ANB and what is similar to what was observed by (12) Albarakati et al.

Farooq et al., in their study to evaluate and compare the accuracy and reliability of cephalometric measurements between both systems, digital and conventional, found statistically significant differences in the U1-NA angle and the interincisal angle, where the values are higher in the manual tracking compared to digital (14).

Polat-Ozsoy et al. (15) found significant differences between the two methods for SNB, Wits, Cd-A, Cd-Gn, FMA, SN-PP, U1-NA (mm), U1-FH and congruent to our investigation: L1- NB (mm), and Li - esthetic plane.

In 2009, Naoumova and Lindman (16), found that most of the landmarks that tended to be less reliable corresponded to soft tissue landmarks, which is proven in this study by a statistical difference in the Li/Pn-Dt measure.

In Pellicer's research (17) in 2014, several types of software were used, and he concluded that cephalometric measurements have different significant results depending on the cephalometric points that conform them. He evaluated that those employing points located on the lower incisors and chin had the highest number of significant results in the study. Specifically, the cephalometric points "incisal edge and apex of the lower incisor" with the Ortomed program and the cephalometric point "chin" with the Dolphin program had the highest incidence.

CONCLUSIONS

It is evident that cephalometric tracing with Planmeca Romexis® software is more reliable than manual tracing according to the data obtained in this research. It should be noted that digital cephalometry has advantages such as storage capacity, better clarity to visualize anatomical structures, greater speed and several cephalograms quickly among others, while conventional cephalometry has as its main disadvantage measurement errors by the operator. It is also important to mention that the cost of acquiring the software is a high investment; for this research, Planmeca Romexis® provided a demo for a limited time for study, but some versions of digital cephalometry can also be found free of charge or as low-cost applications.

Nowadays, digitalization is becoming increasingly important in our practice as dentists because it facilitates processes, allows innovation and precision in treatments and diagnoses.

The authors of this study declare that they have no conflict of interest and that this study was financed with their own funds.

AUTHOR CONTRIBUTION STATEMENT

Conceptualization and design: M.J.R.P.

Literature review: M.J.R.P. and P.C.T.

Methodology and validation: R.C.H.

Formal analysis: P.C.T. and M.J.R.P.

Investigation and data collection: P.C.T. and R.C.H.

Resources: P.C.T.

Data analysis and interpretation: M.J.R.P., P.C.T. and R.C.H.

Writing-original draft preparation: P.C.T.

Writing-review & editing: P.C.T. and M.J.R.P.

Supervision: P.C.T.

Project administration: P.C.T.

Financing acquisition: P.C.T.
