1. INTRODUCTION
Before the bioreactor inoculation with the microorganism of interest, fermentation media is typically sterilized to remove microbial population (Armenante & Leskowicz, 1990). The most commonly used sterilization method is moist heating with use of pressurized steam at 0,72 kPa (15 lbs in-2); if the air has been evacuated from the autoclave’s chamber and the atmosphere is saturated with steam, the corresponding temperature is 121 °C (Boeck et al., 1988).
The main objective of autoclaving is to inactivate undesirable contaminating microorganisms. The alteration of media composition during sterilization can be a secondary and undesired effect through one or more mechanisms, for example: degradation, hydrolysis, conjugation and formation of insoluble compounds (Boeck, Alford, Pieper, & Huber, 1989; Fernlund, Mobuchon, & Zobeiry, 2018; Munarin, Bozzini, Visai, Tanzi, & Petrini, 2013).
Sterilization is an operation that must be evaluated for every specific process (Schneider, 2014). Determining required conditions to achieve a sterile system has both practical and theoretical implications, for which it is important to design a procedure that will guarantee sterilization without unnecessary exposure to the destructive action of high temperatures, and at the same time to minimize energy consumption (Lau, Reizes, Timchenko, Kara, & Kornfeld, 2015).
In order to calculate the death rate achieved during the sterilization process, it is necessary to study in advance the temperature-time profiles of both the culture medium inside the bioreactor, as well as the temperature in the autoclave chamber.
The ISO standard for moist heat sterilization of health care products dictates a number of acceptable time and temperature combinations recognized by some pharmacopoeias (Iso/Ts 17665-2:2009, 2009). The combinations 121 °C-15 min, 126 °C-10 min, 134 °C-3 min are the minimum temperature and time established for obtaining adequate levels of microbial lethality during the sterilization process. These parameters are built on the overkill concept where a safety factor has been developed for saturated steam or water in contact with the microorganisms present in the medium and the inside of the bioreactor (Iso/Ts 17665-2:2009, 2009).
Microbial inactivation capability of the heat sterilization process is a parameter that is expressed as an F value (F0) (Boca, Pretorius, Gochin, Chapoullie, & Apostolides, 2002). This parameter is a unit of lethality that is defined as the equivalent time at 121 °C in order to destroy spores or vegetative cells of a particular organism (Choi, Cheigh, & Chung, 2013). The total F0 value of a process can be calculated by the integration of the lethal rates in regards of the time at different temperature intervals (Boca et al., 2002).
The decrease in the microbial population generally follows a first order kinetic model by equation (1), which follows the integration for a fixed value of kd (Huang, Hwang, & Phillips, 2011).
(1)
If kd is a known value, this equation allows to calculate the number of viable microorganisms after a determined exposure time (t). However, usually the initial population is unknown and most likely heterogeneous. For this reason, heat resistant strains of Bacillus stearothermophilus, with known spore concentrations have been used as biological indicators for steam sterilization in laboratory and industrial processes (Noble, 1992).
The thermal deactivation kinetics of B. stearothermophilus has been proven to follow the Arrhenius relationship with temperature (Singh, Hensler, & Fuchs, 1989).
(2)
(3)
The previous expression is related to the definition of the D value in equation (4). This parameter is defined as the decimal reduction time; the time required to reduce a microbial population by a factor of 10 of its initial value at constant temperature (Wood, Lemieux, Betancourt, Kariher, & Griffin, 2008).
(4)
When D value is given for two different temperatures, it is expressed as:
(5)
By comparison, between equations (3) and (4)
(6)
The mathematical expression for lethality (see equation 8) is stated as the relationship among equations (4) and (5).
(7)
(8)
Equation (8) includes the z value known as the temperature sensitivity parameter, which represents a temperature range which results in a ten-fold change in D values (Ates, Skipnes, Rode, & Lekang, 2016).
Nonlinear regression models describe the relationship between a response and a predictor (Burghaus & Dette, 2014). In microbiology studies, mathematical models are used to describe the behavior of microorganisms under different physical and chemical conditions (Zwietering, de Koos, Hasenack, de Witt, & van’t Riet, 1991). Several models have been suggested and tested for modeling the temperatures dependence of the bacterial behavior. In this paper, we use the parameterization consideration described by Ratkowsky (1993) in order to find the correlation between sterilization conditions and death rate.
The parameterization used is a nonlinear regression model, of two or more parameters, that is similar to linear in its original parameterization (Ratkowsky, 1993).
(9)
Thus, sterilization process in jacked stirred bioreactors is crucial and information is still scarce. The aim of the present work is to evaluate the relationship between lethality and death rate by the Ratkowsky model in order to predict reliable sterilization parameters.
2. MATERIALS AND METHODS
Medium
The carbon source used during the experimental trials was food grade molasses from sugar cane (30 g/L) with buffered peptone water as a solvent (Oxoid Microbiology Products). The medium had a pH between 6,8 and 7,2 with a sucrose content of 13,4 g/L and a glucose content of 1,56 g/L.
Bacterial strain
The bacterial strain used in this study was Bacillus cereus isolated from food grade molasses from sugar cane described above and identified by 16S ribosomal RNA gene (rDNA) amplicon analysis. The results obtained after the Basic Local Alignment Search Tool (BLAST®) analysis were compared using the GenBank database of the National Center for Biotechnology Information (NCBI).
Experimental trials
7-liter stirred-tank bioreactors were used for sterilization (Applikon, Schiedam, Netherlands) (See figure 1). These bioreactors were jacketed glass vessels with multiport stainless head plates. The bioreactors were assembled with all customary accessories and had an operating volume of 4 liters. Vessels were equipped with a data logger (MadgeTech, New Hampshire, United States of America) to monitor the temperature in real time. Bioreactors were sterilized in an industrial autoclave (Tuttnauer, Breda, Netherlands) (Karayannakidis, Apostolidis, & Lee, 2014).

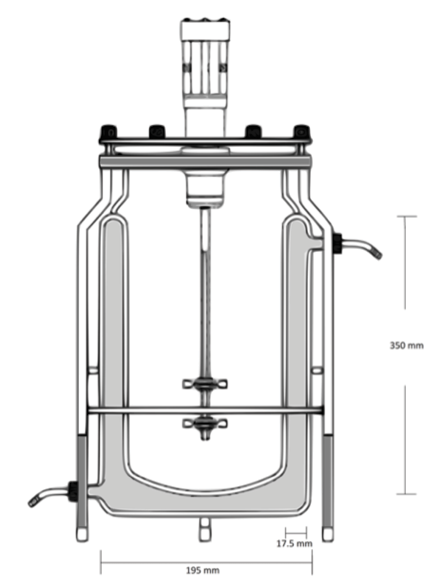

Figure 1. Schematic of a 7-liter stirred-tank jacketed
bioreactor system with a jacket working
volume of 1.2-liter
The bioreactors were placed in the middle of the autoclave chamber in an equidistant manner. The temperature probe from the autoclave chamber was positioned in the middle of both bioreactors. The temperature data loggers were placed inside the bioreactor, at one third of the total height from the base to the top. The experimental runs consisted of the following sterilization temperatures: 119 °C, 121 °C and 123 °C, and sterilization times: 10 min, 15 min, 20 min, for a total of 9 experimental runs with duplicate bioreactors. The inoculum consisted of 1,40x109 CFU (equivalent to 9,01 logarithmic scale) in every sterilization batch.
Microbial death rate
After sterilization, three samples of 30 mL of the culture medium were taken for microbiological testing. Serial dilutions were spread over the surfaces of two 90 mm diameter sterile Petri dishes. Samples were plated on Tryptic Soy Agar (Oxoid Microbiology Products) and Potato Dextrose Agar (Oxoid Microbiology Products) in aerobic conditions. Plates were incubated at 35 °C and 28 °C, for 16 and 36 hours, respectively. Following incubation, CFU were counted. For all these tests, duplicates were assessed.
Lethal rate calculations
Experimental measurements from the data logger were downloaded to a computer using MadgeTech 2.5 software (MadgeTech, United States of America) in order to graph the temperature profile. Data was plotted using EXCEL® and the area under the plot was estimated utilizing Riemann sums to calculate the F0 value (Padrón et al., 2001). The lethality obtained during cooling was not included in the F0 calculation.
Ratkowsky correlation
The results of the UFC counts in function of the accumulated lethality of the experimental runs were analyzed with the software CurveExpert (Hyams Development, United States of America). Therefore, the non-linear model of Ratkowsky was chosen in the data analysis due to the fit between microbial growth and temperature (Ratkowsky, 1993).
3. RESULTS AND DISCUSSION
The ability of inactivating undesirable contaminating microorganisms and avoiding alteration of media composition during sterilization are keys issues in the development of effective sterilization processes. Due to this, there has been an increasing interest in understanding the relationship between lethality and heat processes on the bioreactor’s sterilization. The purpose of this study was to investigate the relationship of sterilization parameters on lethality and death rate of Bacillus cereus by the Ratkowsky nonlinear model in order to predict sterilization efficacy.
The variables considered in the experimental procedures were death rate and viable microorganisms, in order to estimate the F0 value in each experimental treatment and analyze the CFU results obtained under different sterilization conditions (Sherer, Hannemann, Rundell, & Ramkrishna, 2009).
3.1 Sterilization parameters for the jacketed bioreactor
The sterilization process lethality is a function of steam temperature and time. Due to this, there are different conditions that can achieve an aseptic acceptable level. In order to compare several sterilization, treatments it is necessary to consider the cumulative lethality value (Alonso et al., 2013).
To define the combination of parameters for tests, the central point was chosen from the definition of lethality given by standard ISO17665-1:2006(E) (Istchenko & No, 2006) (sterilization temperature 121 °C for 15 min) and the related equidistant points.
Figure 2 shows lethal-rate and temperature-time profiles for examined conditions (Young & Lasher, 1995). It is shown that treatments with low value parameters
(119 °C, 10 min) reach a maximum temperature nearly 85 °C, which differs 36 °C from the standard sterilization temperature (Simpson, Nuñez, & Almonacid, 2015).
The difference of temperatures diminishes as the medium is treated with longer sterilization periods at constant temperature. With the treatments of 15 and 20 minutes of sterilization, the differences were 30 and 28 °C, respectively. This behavior is also noted in the other heat treatments. It was expected that the most severe treatment
(123 °C, 20 min) had a closer temperature to 121°C, showing a maximum temperature of 94 °C. This supports the findings of Morales-Blancas et al. (2005), were the progressive increase of temperature follows a known behavior of heat dynamics at the cold point of a vessel (Breu, Guggenbichler, & Wollmann, 2007; Morales-Blancas, E. Pérez,
D. Rodríguez, C. Simpson, 2005).

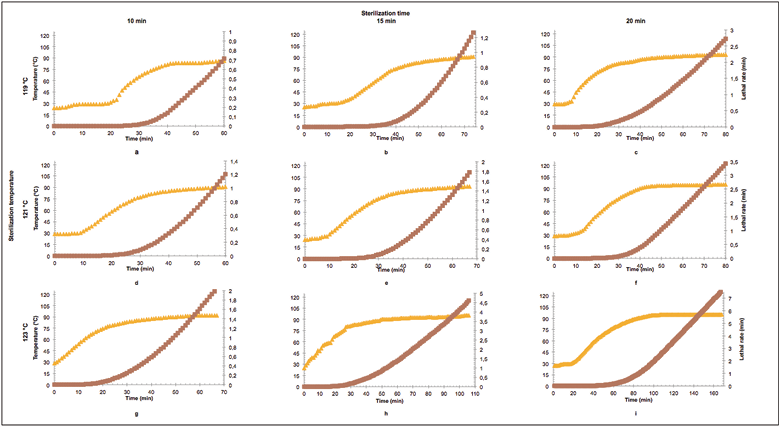

Figure 2. Lethal-rate and temperature-time profiles for studied conditions: (
) temperature
data inside of bioreactor (
) cumulative lethality function of time
Figure 2 shows how autoclaving temperature grows quickly during heating within a 9-minute come-up time. Similar results in the early heating stage were shown by Singh et al. (2015), observed in both stirred and non-stirred vessels (Singh et al., 2015).
When cooling process starts, it is important to notice that this stage is the longest of the stages, approximately 60% of the entire sterilization process, if it considers a time between the highest temperature inside the vessel and the final temperature at the end of a sterilization cycle. In order to estimate the parameters of interest, data between operation temperature through maximum temperature inside the bioreactor were taken.
One of the most remarkable observations is that during all experimental runs the highest temperature inside the glass-vessel is obtained after the end of autoclave’s sterilization time (Simpson, Almonacid, & Teixeira, 2003). In addition to this, in all experimental runs within this temperature were less than 121 °C. This means that colony forming units equal zero did not keep a certain temperature value rather than maintain a heating process during the necessary time to fulfill a minimum lethal rate. This value is different for each equipment, as well as the sterilization process, material conductive coefficient, culture medium and the relationship between the chamber’s temperature and the bioreactor’s temperature such as motor force of heat transfer, among other factors (Choi et al., 2013). The latter was shown in canned food processing, were Matser et al. (2004) demonstrated that a combination of heat and pressure pulses results in the inactivation of spores in 500 ml cans for different types of foods.
This experiment suggests two possible explanations for this behavior. First, the jacket of bioreactors declines heat transfer through inside the vessel due to a reduced contact between the vapor and the liquid medium. Second, molasses is a complex feed stock, in contrast, diluted medium has a more adequate heat transmission for relatively short sterilization time, hence medium with suspended solids require a much longer sterilization time at 121 °C to ensure sterility (Rogers, 2012).
Figure 3. Contour plot of log (CFU) in function of temperature and time in
sterilization processes for a jacketed biorreactor
We used the Ratkowsky nonlinear model as the mathematical model for temperature and time. This model offers advantages in this case if one of the parameters is close to being linear, for which it is possible to reparametrize the offending parameter without disturbing the properties of other parameters. This model is widely used in works of descriptive microbiology (Bernaerts, Versyck, & Van Impe, 2000; Ratkowsky, 1993; Wang & Wan, 2008; Zwietering et al., 1991). The implementation of B. cereus strains for sterilization testing (Hariram, U. and Labbe, 2015; Luu-Thi, Grauwet, Vervoort, Hendrickx, & Michiels, 2014) is suitable in this case, as its spores are known for a high thermic resistance with a D value of 27 min at 100 °C (Ates et al., 2016).
The relationship between temperature, time for sterilization and the CFU at the end of the sterilization process is presented in a contour plot (figure 3). The darker regions represent higher biological content in comparison to the lighter regions.
In the region between 16 and 20 min with near 123°C it was clear that the presence of contaminant microorganisms was highly diminished. In contrast, common sterilization conditions of 121°C and 15 min still showed the presence of microorganisms in the range of 3x103 UFC and a F0 of 1.8 min.
Taking into consideration the results obtained, it is possible to predict the CFU based on F0 data. This could offer an interesting basis for future sterilization practices and a methodology as a starting point for sterilization trials in industry and save time and costs.

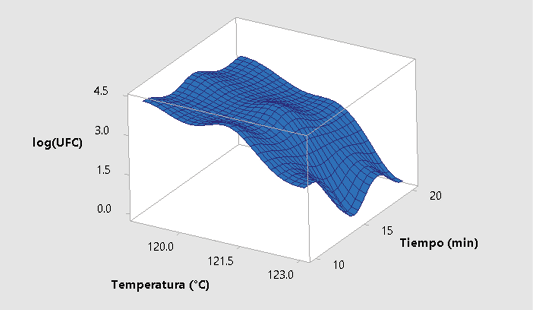

Figure 4. Surface plot of log(CFU) in function of temperature
and time in sterilization processes for a jacketed bioreactor
The tridimensional surface chart (figure 4) demonstrates the nonlinear dynamics between time and temperature. In this chart, it is possible to observe the overall behavior of the response variable (CFU) based on temperature and time. There exists a maximum point when temperature and time are 119 °C and 10 minutes, with a respective minimum point reaching 123 °C and 20 minutes. For the present investigation, the objective was to reduce the response variable to ensure sterility condition and this is achieved with a minimum value of accumulated lethality of 3min or 123 °C and 20 minutes.
In figure 5 the graphic behavior of experimental data and Ratkowsky model appears. The nonlinear model was selected with the parameterization option mentioned by Rathowsky (1993), considering a two variable model (a y b), to describe a convex curve which represents graphically the thermal deactivation due to the action of temperature.
The CurveExpert® program determined that the correlation coefficient between the model and experimental data is 0,97. For this article’s purpose, this value is regarded as a valid correlation (Ratkowsky, 2002). With this, an analysis coefficient equation was obtained with the following equation:
(10)

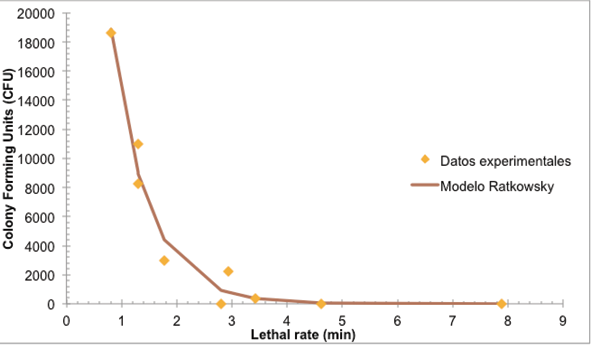

Figure 5. Graphic behavior of experimental data and Ratkowsky correlation curve
The use of this model allows the prediction of results from sterilization trials in jacketed bioreactors, for which it is possible to predict CFU values from initial the accumulated lethality of sterilization tests. These results improve quality insurance for the biotechnological industry by the use of sterilization parameters that allow an efficient sterilization with low energy consumption.
4. CONCLUSIONS
The Ratkowsky model expressed the relationship between sterilization parameters on lethality and death rate of Bacillus cereus, which exhibited a nonlinear behavior. The Ratkowsky model with parameterization showed a positive correlation of 0,97 between the F0 and lethality.
In our study, it was found that a minimum accumulated lethality value of 3,0 min is required for a bioreactor’s sterilization assurance, which is equal to at least for 3,0 min at 121 °C. This means to work with a higher temperature due to the progressive increase of lethality in jacked stirred bioreactors. This value is similar to the minimum standard for accumulated lethality established in food standards as mentioned by Choi et al (2013). Consequently, food processed in higher volumes is treated with higher values of lethality to assure overall food safety and quality (Choi et al., 2013).
When analyzing temperature profiles and lethality, a progressive increase over time is noted. In all the cases examined, the maximum temperature inside the container is recorded after finishing the sterilization process. Compared to the experimental runs, the maximum temperature obtained inside the bioreactor was 94 ° C, which is 27 °C Celsius degrees lower than 121 °C.
Based on the contour graphic, the region within 16 and 20 min approximating 123 °C did not show a relevant presence of microorganisms. In contrast, under these conditions -including common sterilization conditions (121 °C and 15 min)-, it presented microorganisms at an increasing level.
The use of the F0 to predict the CFU in sterilization process could be implemented as an important tool for establishing sterilization processes in the industry and reduce the associated costs and trial time of these.
Acknowledgements
Authors thank Sergio Madrigal-Carballo for his collaboration during the manuscript revision. Authors are grateful for the financial support provided by CeNAT-CONARE grant and CENIBiot. The authors declare that they have no competing interests.
5. NOMENCLATURE
D: decimal reduction (min)
DT1: decimal reduction at initial temperature (min)
DT2: decimal reduction at final temperature (min)
kd: thermal death constant (s-1)
N: number of viable organisms
N0: initial number of viable organisms
t: tiempo (min)
z: temperature sensitivity (° C)
