09-NIRCHIO-Karyotype of the invasive species Pterois volitans

The genus Pterois (Linnaeus, 1758) (Scorpaeniformes: Scorpaenidae) contains nine valid species, native to the Red Sea and Indian Ocean throughout the Western Pacific (Schultz 1986). Two similar species, the red lionfish P. volitans (Linnaeus, 1758), and the devil firefish P. miles, have been considered in the past as a synonymy (Beaufort & DeBriggs, 1962; Dor, 1984), but Shultz (1986) demonstrated that they can be distinguished by dorsal- and anal-fin rays counts (P. volitans usually has 11 dorsal and seven anal-fin rays while P. miles, has generally 10 dorsal and six anal-fin rays). More recently, sequence analyses of mitochondrial genes resolved specimens of P. miles and P. volitans in distinct monophyletic clades providing molecular evidence that they are different species (Freshwater et al., 2009).

P. volitans and P. miles are native to the Indo-Pacific and were introduced into Florida waters as a result of aquarium releases (Courtenay, 1995; Whitfield et al., 2002; Semmens et al., 2004), and are recognized as recent invaders of the Western Atlantic and Caribbean Sea (Costa Rica to Venezuela), with hundreds of sightings documented after the first lionfish was reported in May 2009 off the coast of South America (González et al., 2009; Lasso-Alcalá & Posada, 2010). Although their populations are expanding rapidly throughout North-West Atlantic and the Caribbean Sea (Whitfield et al., 2007), 93% of the Atlantic samples of lionfish consist of P. volitans and only 7% correspond to P. miles (Hamner et al., 2007).

In response to their proliferation throughout the Caribbean, the International Coral Reef Initiative (ICRI) set up an ad-hoc committee, held a workshop in order to develop a region-wide strategy for lionfish control and management that requires achieving all possible information specifically with their impact, reproduction and genetics (http://www.icriforum.org/icri-meetings/icri-regional-lionfish-workshop).

As long as lionfish invasion continues, genetic research will become a powerful tool for assessing pathways of dispersion, populations divergence, expression of invasion-driving phenotypes, and possibly detection of new introduction events. Thus, the development of high-resolution lionfish genetic markers will allow a more throughout investigation of this invasion, providing a better understanding of both invasion genetics and marine phylogeography (Morris & Green, 2012).

This paper presents a molecular and cytogenetic characterization of lionfish collected at Margarita Island, Venezuela, reporting the chromosome number and formula, constitutive heterochromatin distribution by C-banding, and the locations of ribosomal genes by Ag-staining and fluorescent in situ hybridization (FISH). It will also include the description of co-localization of the major and minor ribosomal genes, and information about sequences of the mitochondrial gene 16S, with the aim to contribute to achieve genetic information on this invasive species.

MATERIALS AND METHODS

Study site: Four specimens of lionfish collected at Margarita Island (10°57’7”N - 64°9’50”W), Venezuela, were analyzed. All the specimens were identified as Pterois volitans according to Shultz (1986), and vouchers were deposited in the fish collection of the Laboratório de Biologia e Genética de Peixes, UNESP, Botucatu, São Paulo, Brazil (LBP13291), and Laboratorio de Citogenética de Peces of Escuela de Ciencias Aplicadas Del Mar, Universidad de Oriente, Nueva Esparta, Venezuela (ECAM-880, ECAM- 901, ECAM-949).

Molecular analysis: In order to molecularly corroborate the taxonomic identification of the specimens of lionfish here studied, a fragment (542 bp) of 16S rRNA mitochondrial gene was amplified and sequenced for a subset of two specimens and compared with the same gene fragment corresponding to P. volitans, P. mombasae, P. milles, P. radiata and P. antennata retrieved from the Genbank. For this molecular analysis, total DNA was obtained from small fragments of muscular tissue, applying the methodology of extraction in saline solution described by Aljanabi et al. (1997). A partial sequence of about 542 bp of the gene 16S rRNA was amplified using the primers 16S-F 5’ ACG CCT GTT TAT CAA AAA CAT 3’ and 16S-R 5’ CCG GTC TGA ACT CAG ATC ACG T 3’ (Kocher et al. 1989). Amplified DNA segments were visualized in 1% agarose gel, using Blue Green Loading Dye I (LGC biotechnology). PCR products were purified through ExoSap-IT®(USB Corporation) and sequenced using BigDye Terminator v 3.1 (Applied Biosystems) according to the manufacturer’s instructions in a ABI3130 (Perking-Elmer) sequencer.

Chromosome analysis: Chromosome preparations were obtained from kidney cells as described in Nirchio & Oliveira (2006). Kidney cells suspensions were obtained from fishes injected intramuscularly with yeast glucose solution for mitosis stimulation 24 hours before injecting colchicine (Lee & Elder, 1980). Silver-stained nucleolus organizer regions (Ag-NORs) were obtained as described by Howell & Black (1980). C-bands were obtained following the method of Sumner (1972).

The 5S and 18S rDNA sites were identified by FISH according to the method proposed by Pinkel et al. (1986). Probes used to localize the 45S rDNA sites were obtained from total DNA of Characidium zebra using the primers 18S F (5’ CCG TGA TGG CTC CTT TTG AT 3’) and 18S R (5’ CCG AGG ACC TCA CTA AAC CA 3’). These probes were labeled with Digoxigenin-11-dUTP (Roche Applied Science) by PCR and the hybridization signal detection was performed using anti-digoxigenin-rhodamine (Roche Applied Science). 5S rDNA was mapped using a probe obtained by PCR from the total DNA of Synbranchus marmoratus using the primers 5S F (5’ GCC CGA TAC CGT CCG ATC TCT 3’) and 5S R (5’ CAG GCT GCC ATG GGT GTA ACG 3’). These probes were labeled with Biotin-16-dUTP (Roche Applied Science) by PCR and the hybridization signal detection was performed using conjugated Avidin-Fluorescein.

The slides were incubated with RNAse (40µg/mL) at 37ºC for one hour. After that, DNA denaturation in formamide 70%/2xSSC at 70°C for two minutes was performed and the chromosome preparations were dehydrated in an ethanol series (70, 85, and 100%). After drying, the hybridization mix (100ng probes, 10mg/mL dextran sulfate, 2xSSC, and 50% formamide in a 30µL final volume) was pipetted onto the samples, which were then incubated overnight at 37°C in a humid chamber. After hybridization, the slides were washed 2X for 10 minutes in 15% formamide solution/0.2xSSC pH 7.0 at 42°C, followed by 3X washes in 0.1xSSC at 60°C for five minutes each; the slides were then incubated in 5% NFDM/4xSSC buffer for 15 minutes and washed with Tween 0.5%/4xSSC for five minutes at room temperature with shaking. Probe detection was done with 0.07% avidin-FITC (Sigma) conjugated with NFDM/4xSSC buffer for 30 minutes, followed by signal amplification using 2.5% antividin-biotin conjugated with NFDM/4xSSC buffer for 30 minutes. Treatments with avidin-FITC and antividin-biotin were accomplished at 37°C in a humid chamber. After each step of signal detection, the slides were washed 3X with 0.5%/4xSSC Tween for five minutes at room temperature. Chromosomes were counterstained with antifade/DAPI.

The mitotic figures were photographed using a Motic B410 microscope equipped with a Motic Moticam 5000C digital camera. Chromosomes were classified according to the arm ratio criteria (Levan et al., 1964). FISH metaphases were photographed with an Olympus BX61 photomicroscope equipped with a DP70 digital camera. Images were digitally processed with ADOBE® PHOTOSHOP CS6 Extended®.

RESULTS

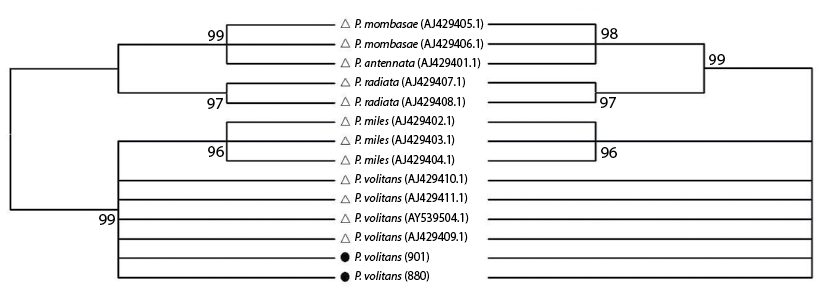

The alignment of two sequences (542pb) of the 16S rRNA mitochondrial gene corresponding to samples identified as Pterois volitans and 12 sequences retrieved from Genbank, corresponding to the species P. volitans, P. mombasae, P. miles, P. radiata and P. antennata), allowed detecting the existence of 519 conserved sites, 23 variable sites, 20 parsimony informative sites and three sites with unique mutations. Figure 1 shows the phylogenetic trees constructed using the methods of maximum likelihood and maximum parsimony, both presenting identical topology and demonstrating the existence of two monophyletic lineages supported by high bootstrap values: one consisting of the species P. mombasae, P. antennata and P. radiata and another consisting of P. volitans and P. miles. In all specimens of P. volitans here examined the diploid number was 2n=48 (2m+10sm+36a) with FN=60 (Table 1, Fig. 2). Chromosomes uniformly decreased in size, making it difficult to clearly identify the homologues except for the only metacentric pair number one, and the pair number two, the largest of the submetacentric series. Figure 3 (A, B) shows a sequentially stained plate that allowed the identification of the NOR-bearing chromosomes.

Most of the chromosomes showed telomeric and/or interstitial C-positive blocks. In addition two chromosomes showed C-positive bands in the pericentromeric regions (Fig. 4).

Chromosomal mapping of 5S and 45S rDNA performed by multi-colour FISH using biotin-labeled and digoxigenin-labeled probes is shown in figure 5. In simultaneous hybridization Biotin-16-dUTP-labelled 5S rDNA probe was detected as a yellow signal (Fig. 5B) whereas Digoxigenin-11-dUTP-labeled 18S rDNA was detected as a red signal (Fig. 5C) and revealed the co-localization of 5S and 18S rRNA genes in the chromosome pair number 2.

DISCUSSION

The overall mean genetic distance between the sequences here analyzed was d=0.0166, which reveals that nucleotide differences are small, even amongst taxonomic units recognized as different species (d=0.0122 between P. volitans and P. miles; d=0.0121 between P. radiata and P. mombasae; d=0.0131 between P. radiata and P. antennata; d=0.0028 between P. mombasae and P. antennata). However, the comparisons of the 16S gene sequences of the specimens analyzed in the present study with sequences already included in GenBank, corroborate that the specimens studied here belong to a clade that incudes exclusively other sequences of P. volitans, and hence excluding the possibility of a misidentification of P. miles.

Thus far, cytogenetic studies of the genus Pterois only cover three species indicating for P. volitans identical diploid number of chromosomes with differing number of arms. Caputo et al. (2003) reported for this species a karyotype, 2n=48, 2m+10st+36a, that differs from the karyotype described here as 2n=48, 2m+10sm+36a. In some cases, differences in karyotype formula reported by different authors may derive from technical artifacts or from subjective attribution of small chromosomes to sm or st categories, rather than representing real polymorphisms (Arai, 2011). Thus it is likely that differences in the karyotype of P. volitans between this study and published data by Caputo et al. (2003) are due to differences in classification of few chromosome pairs.

However differences between Indian Ocean and Venezuelan P. volitans samples were detected both in NORs location and C-bands. Indeed Caputo et al. (2003) reported the presence of terminal-centromeric located Ag-NORs on the short arms of a pair of subtelocentrics elements, while samples examined in this study have the Ag-NORs located on the short arm of the largest submetacentric chromosome pairs classified as number two. Some metaphase plates showed association by a heteropycnotic tips on the short arm of these chromosome explaining why some interphase cells shows two nucleoli whereas others display only one.

Constitutive heterochromatin was identified only in four homologues in Javanese P. volitans, located at centromeric and interstitial positions (Caputo et al., 2003), whereas in the samples studied here almost all chromosomes exhibited C-positive blocks. Indeed only three pairs of chromosomes were negative for C-banding with all remaining ones presenting telomeric and some interstitial C-positive blocks and, in some cases, interstitials. Only two chromosomes showed pericentromeric heterochromatic regions. Since the presence of interstitial C-heterochromatin would reveal the occurrence of chromosomal rearrangements by pericentric inversions (Zenzes & Voiculescu, 1975), chromosome microrearrangements involving heterochromatin seem to have occurred during the spread of P. volitans which is consistent with the significant molecular differentiation of lionfish reported by Betancur et al. (2011) between the Northern (US east coast, the Bahamas and Bermuda) and the Caribbean populations of P. volitans of the Western Atlantic.

Extensive mapping of the 45S and 5S rDNA in fish has revealed a non-association of the two classes of ribosomal genes in fish genomes, with most species having these sequences on different chromosomes (Cioffi & Bertollo, 2012). Co-localization of 5S rDNA and 45S rDNA could facilitate translocations between the 5S and 45S cluster, causing disruptive interference in the structure and function of such genes (Nirchio & Oliveira, 2006) and, therefore, possibly explain why the majority of vertebrates have the 5S and 45S rDNA clusters on different chromosomes (Martinez et al., 1996; Fujiwara et al. 1998; Ferro et al., 2001) this arrangement being evolutionarily advantageous. The presence of clusters of these sequences either very close to or far apart from each other on the same chromosome has already been reported in teleosts including Salmo salar (Pendás et al., 1994), Oncorhynchus mykiss (Morán et al., 1996), Acheilognathus tabira subsp. 1, Cyprinus carpio (Inafuku et al., 2000), Rhomboplites aurorubens (Nirchio et al., 2009) and Mugil incilis (Hett et al., 2011). Although the terminal localization of single major ribosomal genes on the short arm of a pair of chromosomes seems to be a shared feature among the species of lionfish cytogenetically studied until now (Caputo et al., 2003; this paper), reports on co-localization of 18S and 5S ribosomal genes in P. volitans, as revealed by the multi-colour FISH are restricted to this study. Thus, further investigations of 5S and 45S ribosomal genes in other Pterois species are required to provide a more throughout analysis of the evolution of these repetitive sequences in the genome of this fish genus.

ACKNOWLEDGMENTS

This work was supported by Consejo de Investigación, Universidad de Oriente, Venezuela, and by Fundação de Amparo à Pesquisa do Estado de São Paulo (FAPESP), Brazil and Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq), Brazil, to CO.

RESUMEN

Cariotipo de la especie invasora Pterois volitans (Scorpaeniformes: Scorpaenidae) de Isla Margarita Island, Venezuela. El género Pterois contiene nueve especies válidas, nativas del Mar Rojo y el Océano Índico en el Pacífico occidental. P. volitans y P. miles son nativas del Indo-Pacífico, y fueron introducidas en las aguas de Florida como resultado de la liberación de peces confinados en acuario y han sido reconocidas recientemente como invasoras en el Atlántico Occidental y Mar Caribe (Costa Rica hasta Venezuela). Los estudios citogenéticos realizados hasta ahora en el género Pterois cubren solamente aspectos básicos de tres especies que incluyen a P. volitans del océano Indo-Pacífico. Debido a la ausencia de información detallada sobre las características cromosómicas de esta especie invasora, el objetivo del presente estudio fue investigar las características citogenéticas en ejemplares de Venezuela mediante técnicas convencionales y moleculares y comparar los resultados con los reportados para el área de distribución original. Para ello, se investigaron las características cariotípicas mediante tinción con Giemsa, bandeo-C, impregnación con Nitrato de Plata (Ag-NOR) e hibridación fluorescente in situ (FISH) dual para localizar los genes ribosomales 18S rDNA y 5S rDNA en cuatro ejemplares de pez león capturados en la Isla Margarita, Venezuela. La comparación de secuencias del gen 16S de los especímenes analizados con secuencias ya incluidas en el Genbank permitieron corroborar la identificación de P. volitans excluyendo así la posibilidad de una identificación errónea de P. miles. El número diploide fue 2n=48 (2m+10sm+36a) con un FN=60. Los cromosomas presentaron tamaños que disminuyen de manera uniforme dificultando la identificación de homólogos, excepto el único par metacéntrico y el par cromosómico número 2. El bandeo-C reveló tres pares de cromosomas bandas-C negativos, mientras que los restantes presentaron bloques bandas-C positivos en posición telomérica y, en algunos casos, intersticial. Sólo dos cromosomas mostraron bandas-C pericentroméricas. La tinción secuencial reveló las Ag-NOR localizadas en los extremos de los brazos cortos del par número dos y el ensayo FISH demostró que los genes 18S rDNA y 5S rDNA se localizan en ese mismo par. Se discute la co-localización de los genes 5S rDNA y 18S rDNA. La distribución de la heterocromatina constitutiva y localización de las NORs en los peces examinados difirió de la reportada para ejemplares de P. volitans del Océano Índico (Java), sugiriendo que durante la propagación de P. volitans han ocurrido reorganizaciones cromosómicas que involucran la heterocromatina.

Palabras clave: cariotipo, genes ribosomales 18S and 5S, genes mitocondriales16S rARN, identificación molecular, especies invasoras.

REFERENCES

Aljanabi, S. M. & Martinez, I. (1997). Universal and rapid salt extraction of high quality genomic DNA for PCR based technique. Nucleic Acids Research, 25, 4692-4693.

Arai, R. (2011.) Fish Karyotypes. A Check List. Tokio: Springer.

Beaufort, L. F. & De Briggs, J. C. 1962. The fishes of the Indo-Australian archipelago. I. Leiden: Brill.

Betancur, R. R., Hines, A., Acero, A. P., Ortí, G., Wilbur, A. E., & Freshwater, D.W. (2011). Reconstructing the lionfish invasion: insights into Greater Caribbean biogeography. Journal of Biogeography, 38, 1281-1293.

Caputo, V., Nisi, C. P., Caniglia, M., & Giovannotti, M. (2003). Chromosomal studies of five tropical scorpaeniform fishes (Teleostei, Scorpaenidae). Italian Journal of Zoology, 70, 201-204.

Cioffi, M. B. & Bertollo, L. A. C. (2012). Chromosomal Distribution and Evolution of Repetitive DNAs in Fish. In M. A. Garrido-Ramos (Ed.) Repetitive DNA. (Vol. 7, pp. 197-221). Genome Dyn. Basel: Karger (DOI: 10.1159/000337950).

Courtenay, W. R. (1995) Marine fish introductions in southeastern Florida. American Fisheries Society Introduced Fish Section Newsletter, 2-3.

Dor, M. (1984). CLOFRES, Checklist of the fishes of the Red Sea. Jerusalem: Israel Academy of Science and Humanities.

Ferro, D. A., Neo, D. M., Moreira-Filho, O., & Bertollo, L. A. C. (2001). Nucleolar organizing regions, 18S and 5S rDNA in Astyanax scabripinnis (Pisces, Characidae): populations distribution and functional diversity. Genetica, 110, 55-62.

Freshwater, D. W., Hamner, R. M., Parham, S., & Wilbur, A. E. (2009). Molecular evidence that the lionfishes Pterois miles and Pterois volitans are distinct species. Journal of the North Carolina Academy of Science, 125(2), 39-46.

Fujiwara, A., Abe, S., Yamaha, E., Yamazaki, F., & Yoshida, M. C. (1998). Chromosomal localization and heterochromatin association of ribosomal RNA genes loci and silver stained nucleolar organizer regions in salmonid fishes. Chromosome Research, 6, 463-471.

González, J., Grijalba-Bendeck, M., Acero, P. A., & Betancur, R. (2009). The invasive Indo-Pacific lionfish, Pterois volitans/miles complex, in the southern Caribbean Sea. Aquatic Invasions, 4, 507-510.

Hamner, R. M., Freshwater, D. W., & Whitfield, P. E. (2007). Mitochondrial cytochrome b analysis reveals two invasive species with strong founder effects in the western Atlantic. Journal of Fish Biology, 71 (Sup B), 214-222.

Hett, A. K., Nirchio, M., Oliveira, C., Siccha, Z. R., Rossi, A. R., & Sola, L. (2011). Karyotype characterization of Mugil incilis Hancock, 1830 (Mugiliformes: Mugilidae), including a description of an unusual co-localization of major and minor ribosomal genes in the family. Neotropical Ichthyology, 9(1), 107-112.

Howell, W. & Black, D. (1980). Controlled silver staining of nucleolus organizar regions with a protective colloidal developer: a one-step method. Experientia, 36, 1014-1015.

Inafuku, J., Nabeyama, M., Kikuma, Y., Saitoh, J., Kubota, S., & Kohno, S. (2000). Chromosomal location and nucleotide sequences of 5S ribosomal DNA of two cyprinid species (Osteichthyes, Pisces). Chromosome Research, 8, 193-199.

Kocher, T. D., Thomas, W. K., Meyer, A., Edwards, S. V., Pääbo, S., Villablanca, F. X., & Wilson, A. C. (1989). Dynamics of mitochondrial DNA evolution in animals: Amplification and sequencing with conserved primers. Proceedings of the National Academy of Sciences, 86, 6196-6200.

Lasso-Alcalá, O. M. & Posada, J. M. (2010). Presence of the invasive red lionfish, Pterois volitans (Linnaeus, 1758), on the coast of Venezuela, southeastern Caribbean Sea. Aquatic Invasions, 5, S53-59.

Lee, M. R. & Elder, F. F. B. (1980). Yeast stimulation of bone marrow mitosis for cytogenetic investigations. Cytogenetics and Cell Genetics, 26, 36-40.

Levan, A., Fredga, K., & Sandberg, A. (1964). Nomenclature for centromeric position on chromosomes. Hereditas, 52, 201-220.

Martínez, J. L, Móran, P., Garcia-Vásquez, E., & Pendás, A. M. (1996). Chromosomal localization of the major and minor 5S rRNA genes in the European eel (Anguilla anguilla). Cytogenetics and Cell Genetics, 73,149-152.

Moran, P., Martinez, J., Garcia-Vazquez, E., & Pendas, A. (1996). Sex linkage of 5 S rDNA in rainbow trout (Oncorhynchus mykiss). Cytogenetics and Cell Genetics, 75, 145-150.

Morris, J. A. Jr. & Green, S. J. (2012). Lionfish Research: Current Findings and Remaining Questions. In J.A. Morris Jr. (Ed.) Invasive Lionfish: A Guide to Control and Management (pp. 3-14). Gulf and Caribbean Fisheries Institute Special Publication Series Number 1, Marathon, Florida, USA.

Nirchio, M. & Oliveira, C. (2006). Citogenética de peces. Nueva Esparta, Venezuela: Coordinación de publicaciones del rectorado de la Universidad de Oriente.

Nirchio, M., Oliveira, C., Ferreira, D. C., Rondón, R., Pérez, J. E., Hett, A. K., Rossi, A. R., & Sola, L. (2009). Cytogenetic characterization of Rhomboplites aurorubens and Ocyurus chrysurus, two monotypic genera of Lutjaninae from Cubagua Island, Venezuela, with a review of the cytogenetics of Lutjanidae (Teleostei: Perciformes). Neotropical Ichthyology, 7, 587-594.

Nishikawa, S., Honda, M., & Wakatsuki, A. (1977) Comparative studies on the chromosomes in Japanese fishes–II. Chromosomes of eight species in scorpionfishes. Journal of the Shimonoseki University of Fisheries, 25, 187-191. (In Japanese with English abstract).

Pendas, A. M., Moran, P., Freije, J. P., & Garcia-Vazquez, E. (1994). Chromosome mapping and nucleotide sequence of two tandem repeats of Atlantic salmon 5S rDNA. Cytogenetics and Cell Genetics, 63, 31-36.

Schultz, E. T. (1986). Pterois volitans and Pterois miles: two valid species. Copeia, 3, 686-690.

Semmens, B. X., Buhle, E. R., Salomon, A. K., & Pattengill-Semmens, C. V. (2004). A hotspot of non-native marine fishes: evidence for the aquarium trade as an invasion pathway. Marine Ecology Progress Series, 266, 239-244.

Sumner, A. (1972). A simple technique for demostrating centromeric heterochromatin. Experimental Cell Research, 75, 304-306.

Whitfield, P. E., Gardner, T., Vives, S. P., Gilligan, M. R., Courtenay, W. R., Ray, G. C., & Hare, J. A. (2002). Biological invasion of the Indo-Pacific lionfish Pterois volitans along the Atlantic coast of North America. Marine Ecology Progress Series, 235, 289-297.

Whitfield, P. E., Hare, J. A., David, A. W., Harter, S. L., Muñoz, R. C., & Addison, C. M. (2007). Abundance estimates of the Indo-Pacific lionfish Pterois volitans/miles complex in the Western North Atlantic. Biological Invasions, 9, 53-64.

Zenzes, M. T. & Voiculescu, I. (1975). C-banding pattern in Salmo salar, a species of tetraploid origin. Genetica, 45, 531-536.

Species	2n	Karyotype	NF1/NF2	Ag-NORs	18S-rDNA	5S-rDNA	C-bands	Locality	Ref.
Pterois lunulata	48	2m+12st+34a	52/58	2	2		+	Indian Ocean	1
P. lunulata	48	2m+10sm+18st+18a	60/78	-	-	-	-	Japan	2
P. radiata	48	4m+8st+36a	52/60	2	2	-	+	Indian Ocean	1
P. volitans	48	2m+10st+36a	50/60	2	2	-	+	Indian Ocean	1
P. volitans	48	2m+10sm+36a	60	2	2	2	+	Venezuela	3
